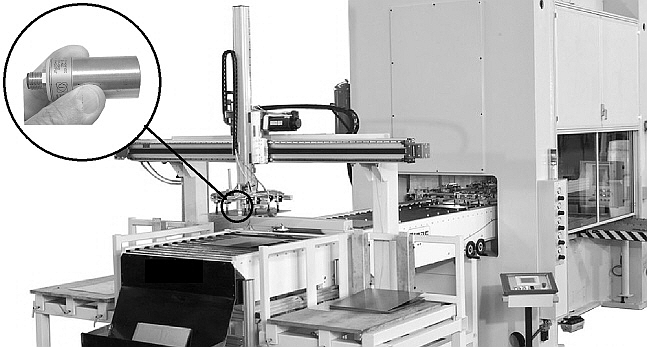

Double sheet sensor type S 1.0P3S on a tandem sheet loader with two sheet magazines in front of a press.

The sensor detects defective double sheets. It also detects the last sheet in the magazine and automatically switches to the second, full magazine. Furthermore, it triggers a visual and audible signal to refill the now-empty magazine. This ensures a continuous supply of sheets to the press.

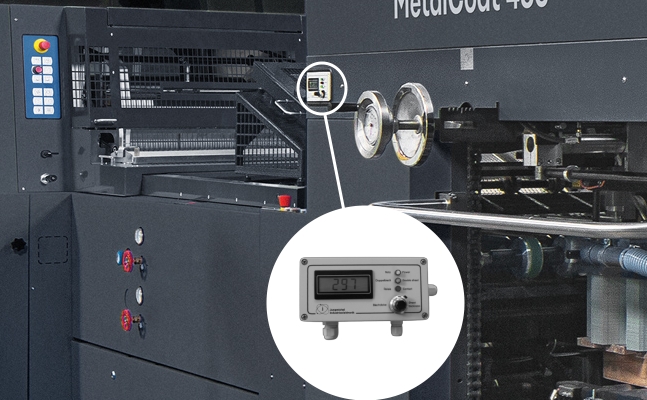

Double sheet detector on a sheet metal printing press in the sheet metal packaging industry.

The double sheet detector controls the automatic double sheet ejection device, thus ensuring an uninterrupted supply of sheets to the printing press even when double sheets occur.

NEW: Small and smart low cost all in one double sheet sensor with digital output that needs no amplifier  or controller. More (PDF)

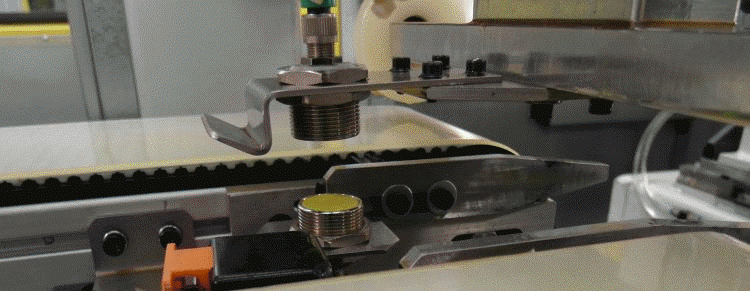

High speed double end detection on a curler 2,5 msec response time. Both sided touch less end monitoring. Full integrated sensors  no additional amplifiere/ controller necessary.
Video clip (Download   52 MB)

Again available Steel SheetThickness Meter FM 08.
For simple sheet thickness measurements on
ends / lids, can-bodies, blanks...
Thickness range:0- 0,500mm Resolution: 0.001mm:
More: (PDF)                                  Viedeo: Youtube

Application example: Double sheet detection on an automatic sheet destacker with a Jungmichel sensor model    S 1.0P3S More examples here

Double Sheet Sensor type S 2.0P3S on a car body welding plant

Can Line Sensors for steel - and aluminium cans up to 150 mm diameter. Smart and economical. With adjustable sensitivity and on- and off delay. More details here

Double sheet sensor S 0.5P4S on a sheet destaker for a sheet slitter in the canmaking industry

NEW: Double Sheet Sensor, teach-in programmable... More (PDF-File)

Video clip (Download 24 MB))

Application example:Double ends detection on closed/ filled can without destroying the can with
steel thickness meter FM 08
